Pleated Nylon membranes filter cartridges (NY6) filter cartridges feature high-strength Nylon membranes, the nylon membrane provide a excellent chemical resistant, and is a economic choice for all kinds of filtration.There are high-area pleated and may provide reliable, economical and efficient particle removal. Economical sterilizing filters.
Features and Benefits
• Excellent chemical resistance suit for solvent filter
• Excellent particles removal ability
• Available in absolute ratings from 0.1 to 3 microns for a range of precise size removal
• Broad solvent compatibility
• High filtration area, combined with low pressure drop, ensure filters high flow rates
Application
• Specially Chemicals •Solvents
• Bottled water •DI Water
• Pharmacerticals •Process Water
• Electronic
Parameters:
|
Filter Medium |
Nylon 6 membrane |
|
Support Layer |
Polypropylene(PP) |
|
Core/Cage/End Caps |
Polypropylene(PP) |
|
Maximum Temperature |
50℃ (122℉) |
|
Maximum Pressure |
58psi(4bar)/70℉(21℃) |
|
34.8psi(2.4bar)/158℉(70℃) |
|
Hot water sterilize |
85℃ /30min |

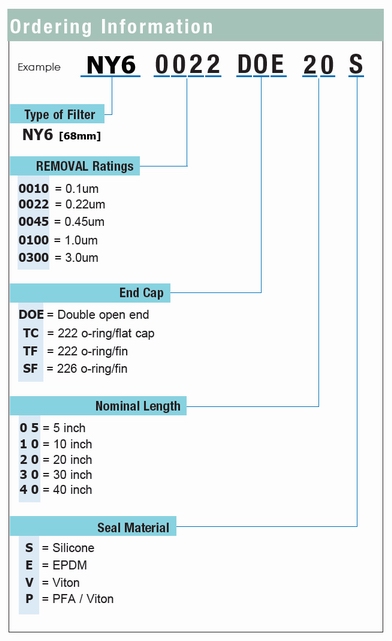

Ordering Information
